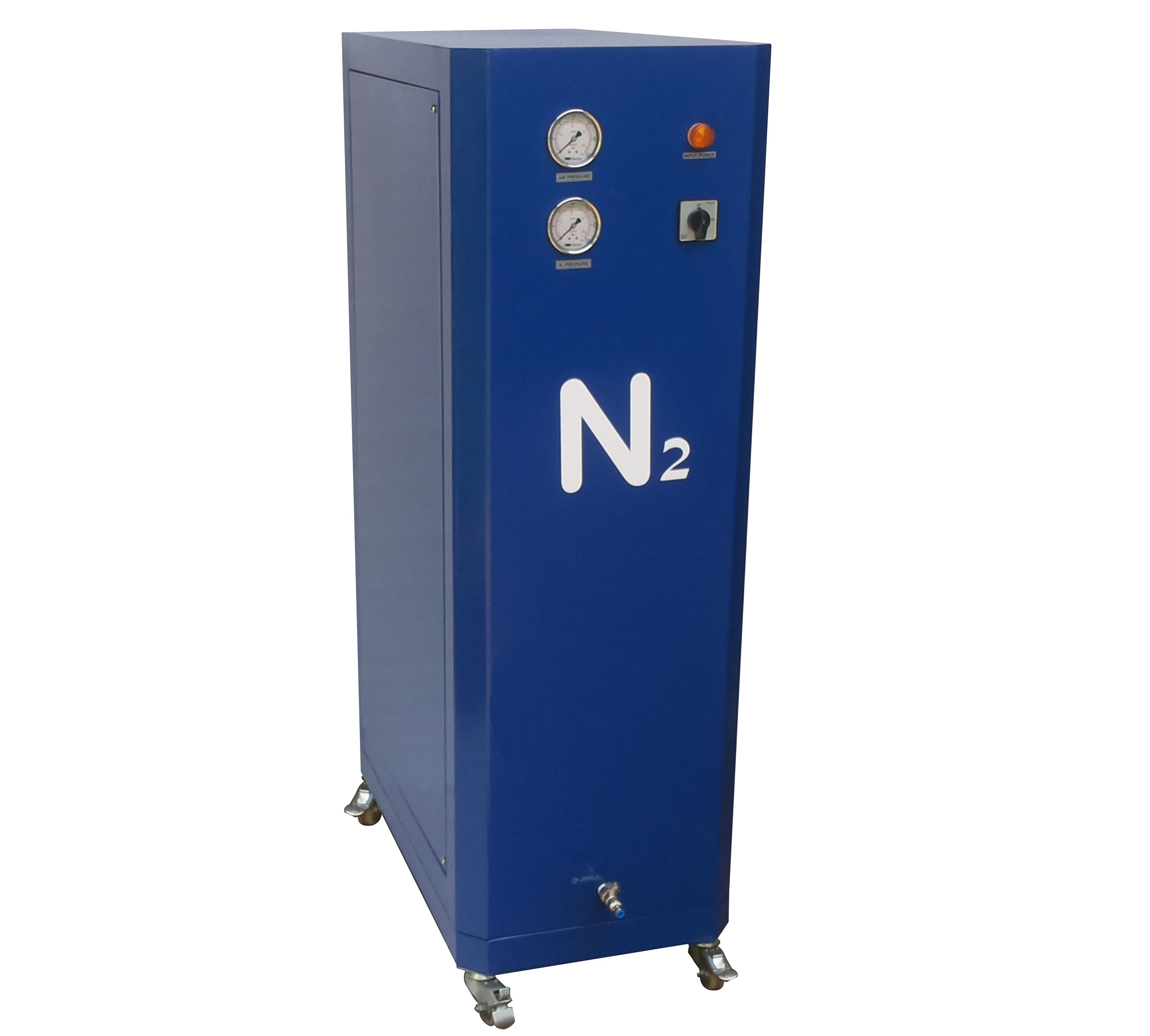

Nitrogen Generator

Nitrogen Generator

Nitrogen Generator

Easy to convert ordinary digital tyre inflator to digital nitrogen tyre inflator using this module. Reliable PSA method for nitrogen generation with 95-99% purity suitable for vehicle nitrogen inflation. Air and nitrogen input pressure option available in single machine. The nitrogen generator uses Pressure Swing Adsorption (PSA) Technology for reliable and cost-efficient nitrogen generation. It comes with computer power chord adapter with fuse protection and switch on indicator, pressure switch for automatic nitrogen generation cut-off, pressure gauge for input air pressure indication and internal tank nitrogen pressure indication, safety pressure relief valve available for internal tank, and wheel base option is available to move to desired location.

  • PSA Technology for nitrogen generation
  • 95-99% purity (adjustable)
  • Pressure switch for automatic nitrogen generation cut-off
  • Safety pressure relief valve
  • Wheel base option available
  • Computer power chord adapter with fuse protection
  • Easy conversion of ordinary digital tyre inflator to nitrogen inflator
  • Air and nitrogen input pressure option available in single machine
  • Pressure gauge for input air pressure and stored nitrogen pressure indication
  • Reliable PSA method for nitrogen generation
  • Wheel Alignment Shop
  • Automotive Garage
  • Depot
  • Puncture Shop
  • Apartments
  • Commercial Parking Lot
  • Fuel Stations
  • Service Centers
systemDigital microcontroller based
electric Supply220 +/- 10VAC, 1Phase, 50 Hz, 5A
air Supply120 - 150 psi / 8 - 10bar
sensor Accuracy± 0.5% of full scale
n2 Production MethodPressure Swing Adsorption Method (PSA Technology)
tank Capacity65 liters
flow Rate4500 lph
purity95-99% (adjustable)
moisture Filter5 micron
oil Removal FilterActivated carbon
auto Drain Valvewith auto timer
safety ValveAvailable
pressure GaugeTwo Pressure Gauge Indication, one for Input Air Pressure and other for Stored Nitrogen Pressure
input Hose2 meter 6x4 mm heavy braided hose
output Hose3 meter 6x4 mm heavy braided hose
functional KeysMembrane keypad suitable for outdoor application
over Pressure SafetyPressure switch with automatic on - off setting
maximum Over Pressure225 psi (15 kg/cm2)
dimensionsVaries depends upon customer requirement
